POL648 Screened Control Consoles

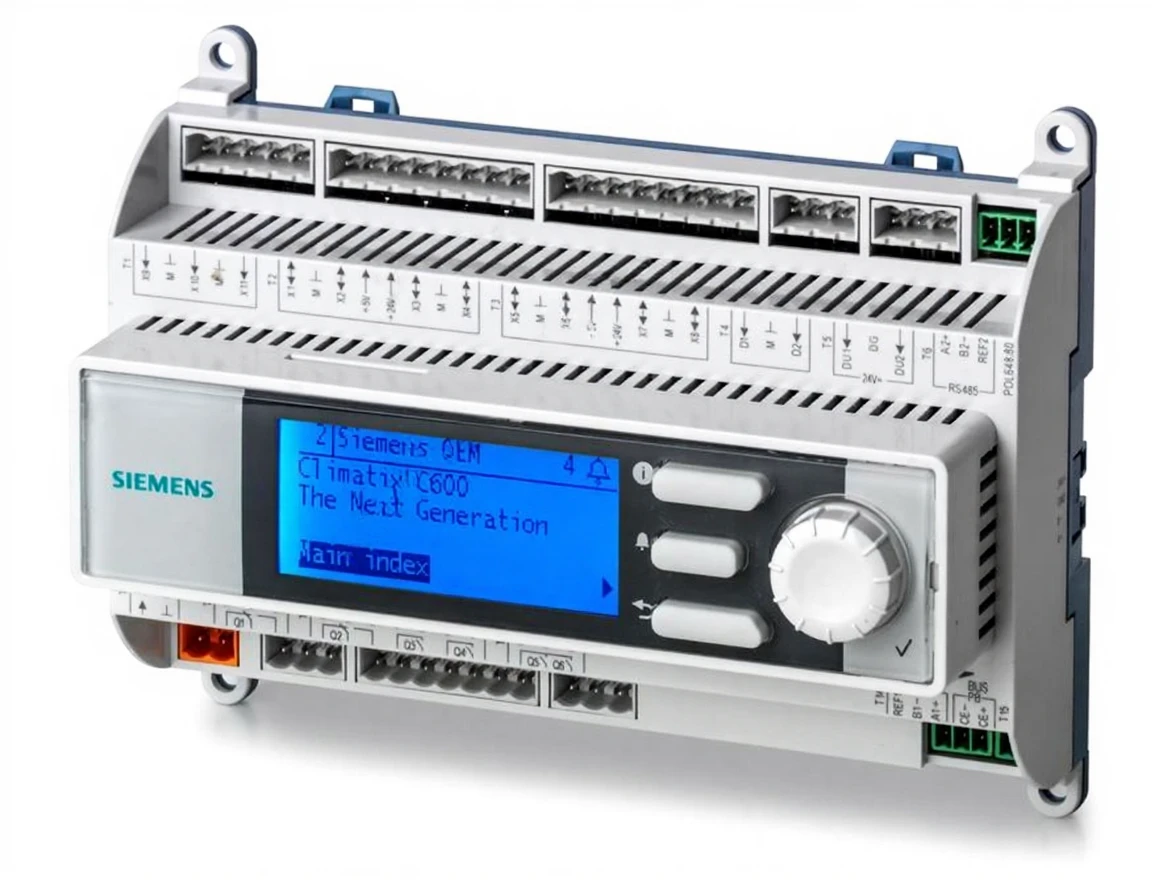

Siemens POL648 Screened Control Consoles

The Siemens POL648 series is designed for HVAC (Heating, Ventilation, and Air Conditioning) systems, featuring advanced control capabilities with a display. These devices allow you to efficiently manage your systems with user-friendly interfaces and flexible input/output options.

Key Features
– Supports connection of various sensors and actuators with 21 physical input/output.
– Offers Modbus, BACnet, PL-Link, JSON, and OPC UA support over protocols such as Ethernet, RS485, and KNX.
– Operates with 24 VAC/DC, providing flexible power supply.
– Includes an SD card slot for application loading, firmware updates, and data archiving.
– Standard USB port available for service and configuration operations.

Technical Specifications
– Processor: ARM Cortex M4, providing fast and reliable performance with a 120 MHz processor.
– Memory: Offers large storage capacity with 64 MB SDRAM and 64 MB Flash memory.
– Dimensions: Can be easily mounted on control panels thanks to its compact design.

Mounting and Socket Set
POL648 series devices can be mounted on DIN rails or fixed to surfaces with screws. It is recommended to avoid vibration during installation. The device’s connection points are pre-assigned for easy connection of various sensors and actuators. Additionally, a BR2032 type lithium backup battery is used for real-time clock.
Application Areas
The POL648 series is designed for use in rooftop air conditioning units, heating systems, and other HVAC applications. It provides effective control, especially in rooftop units up to 20 tons.
Our company offers professional services for the supply, installation, and commissioning of Siemens POL648 series devices. We are here to support you with quality products and expert assistance for your projects.
